The RailStand #N-2184 and SMT #15104 comparsion table






RailStand N軌跑步機是目前市面上體積最小、功能最多的的跑步機, 除此之外我們多項獨特的設計提供了最佳的導電、絕緣及使用的方便性. 此外, 精密度、外觀、質感我們也都考慮到了. 我們為了做到最好最頂級的跑步機, 精心研發並投入重資比別人開發更多模具已達到最好的最精緻的跑步機給車迷. 相信 RailStand 絕對是您最佳的選擇, 歡迎參觀比較. 以下是我們 與 SMT 模型火車跑步機之差異性比較:

       RailStant N scale roller test stand is the smallest and more functuon roller test stand in the world. RailStand roller test stand design base is earth's gravity priciple to conduct the electric. RailStand offer the best way to isolate between the positive and negative electric then Minitrix, please take look these pictures and discription then you will know what's the different between the RailStand and SMT N scale roller test stand.


RailStand #2184

SMT #15104

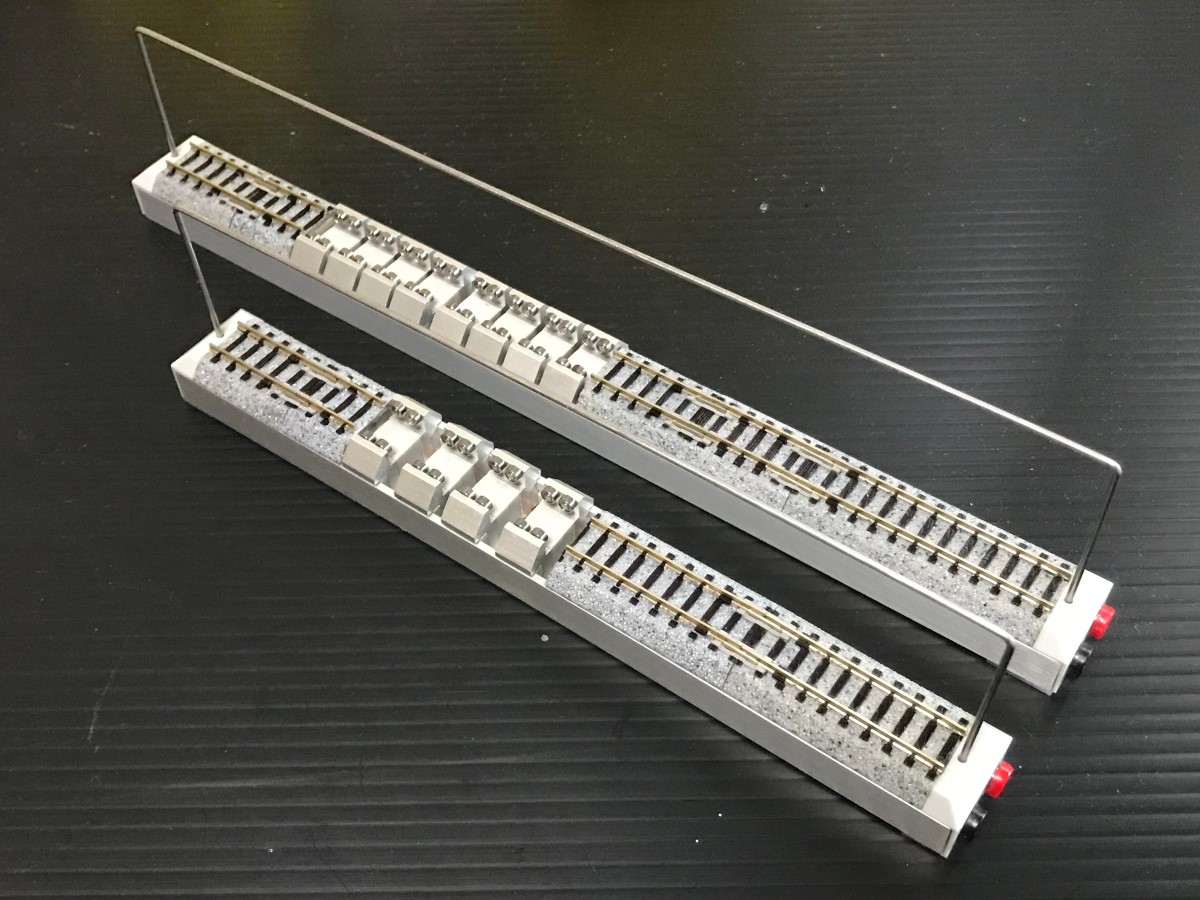

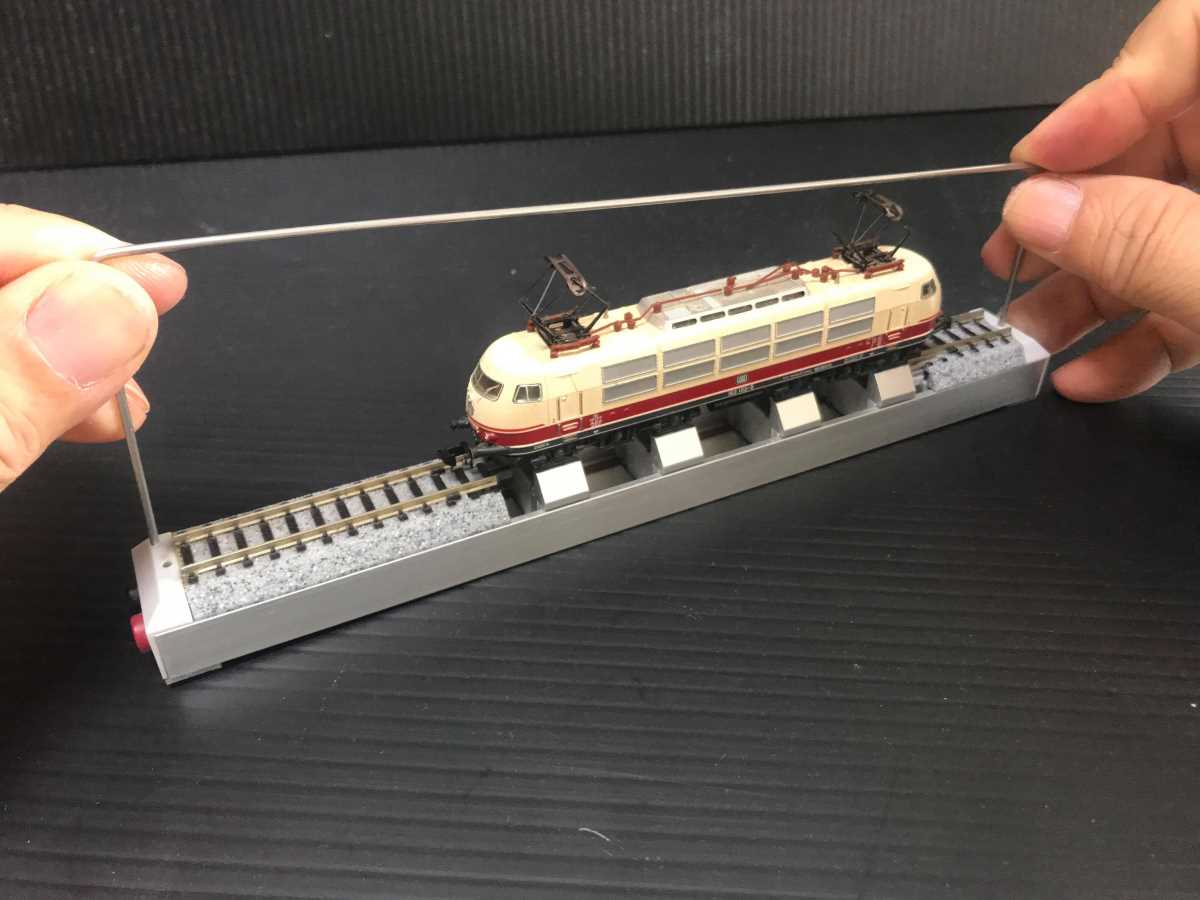

　 可測試經由集電功導電的電氣機車.(包裝內容含此配件)
Can test the power through the pantograph.
　
無集電功測試功能.
Don't have the pantograph test function.
　
　 兩個培林組組成一個培林架, 一次移動一個培林架調整位置更方便.
A pairs of bearing brackets are easy to adjust and move the brackets.
　

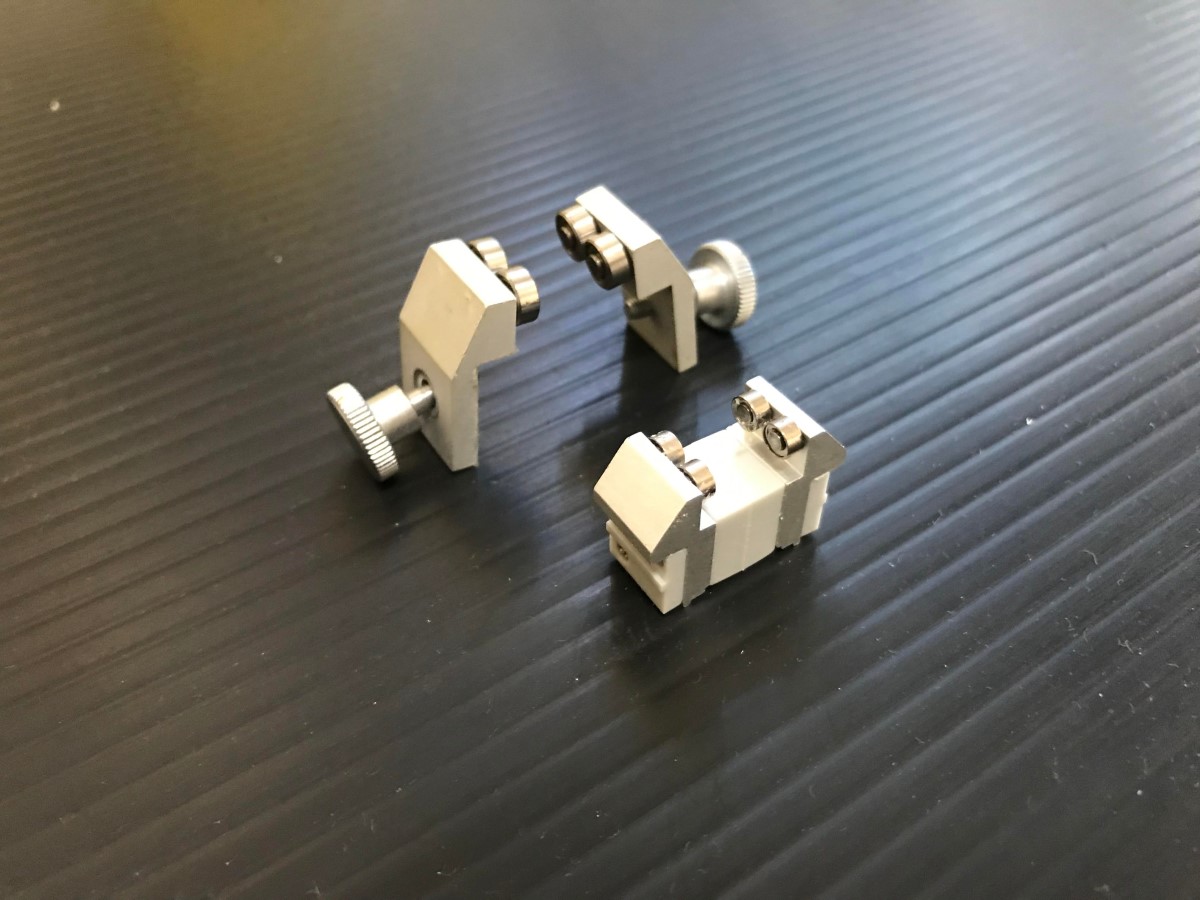

單一培林組設計, 須單獨調整每一個培林組, 使用不方便.

You have to move each bearing to every drive wheels.
　
圖檔
組合式軌道讓您 更有彈性的測試各種大小, 各種類型的模型火車.
The assemble tracks and moveable bearing brackets are able to all kind of brand locomotives which have the double gear driver transmission mechanism locomotives.
Our N-2838 is able to test the America bigger locomotives as: big boy, challenger, EM1, DD40AX....
　

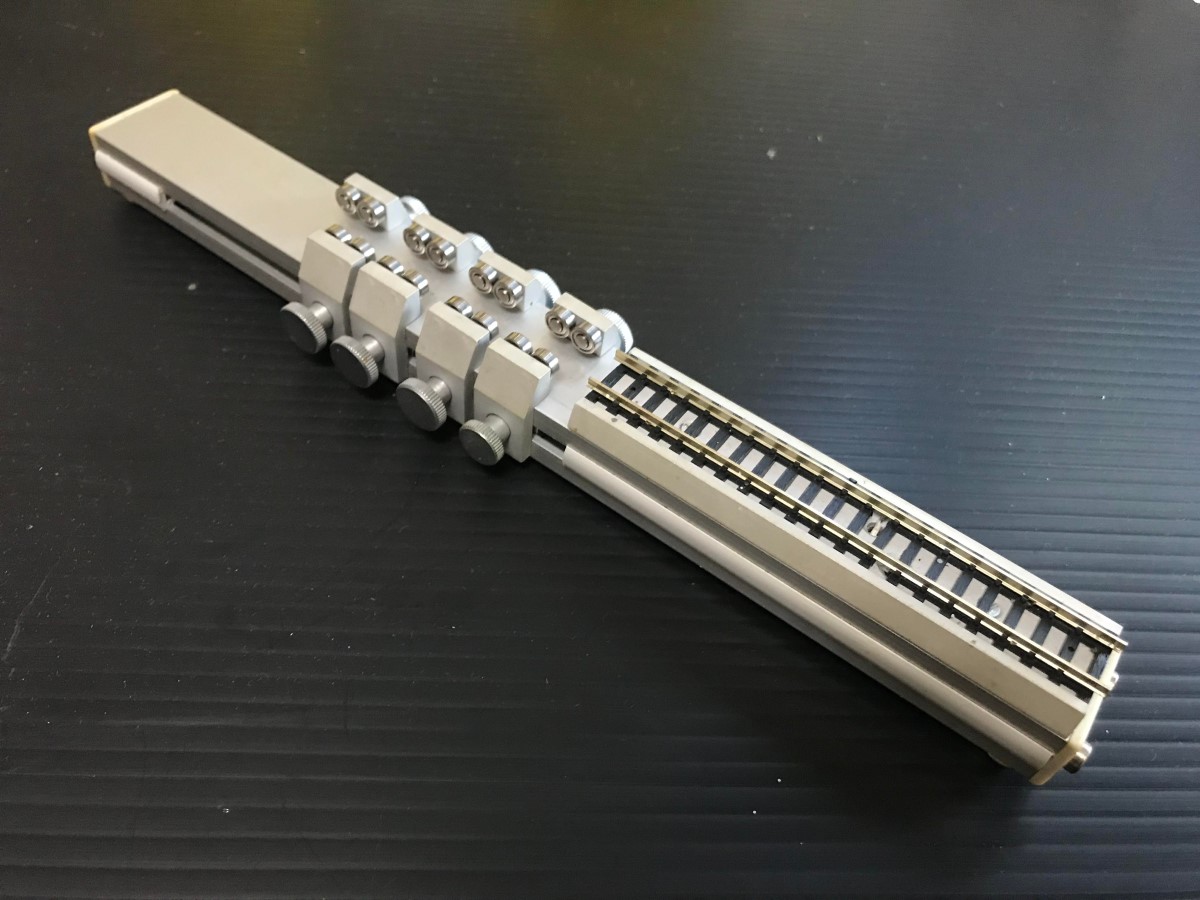

無法移動軌道, 不適合測試大型及柴油, 電氣等雙組動輪組模型火車頭.
Because the track can't move so those bearing
sets can not move to long distance for the bigger
diesel, electric or steam locomotives.
　

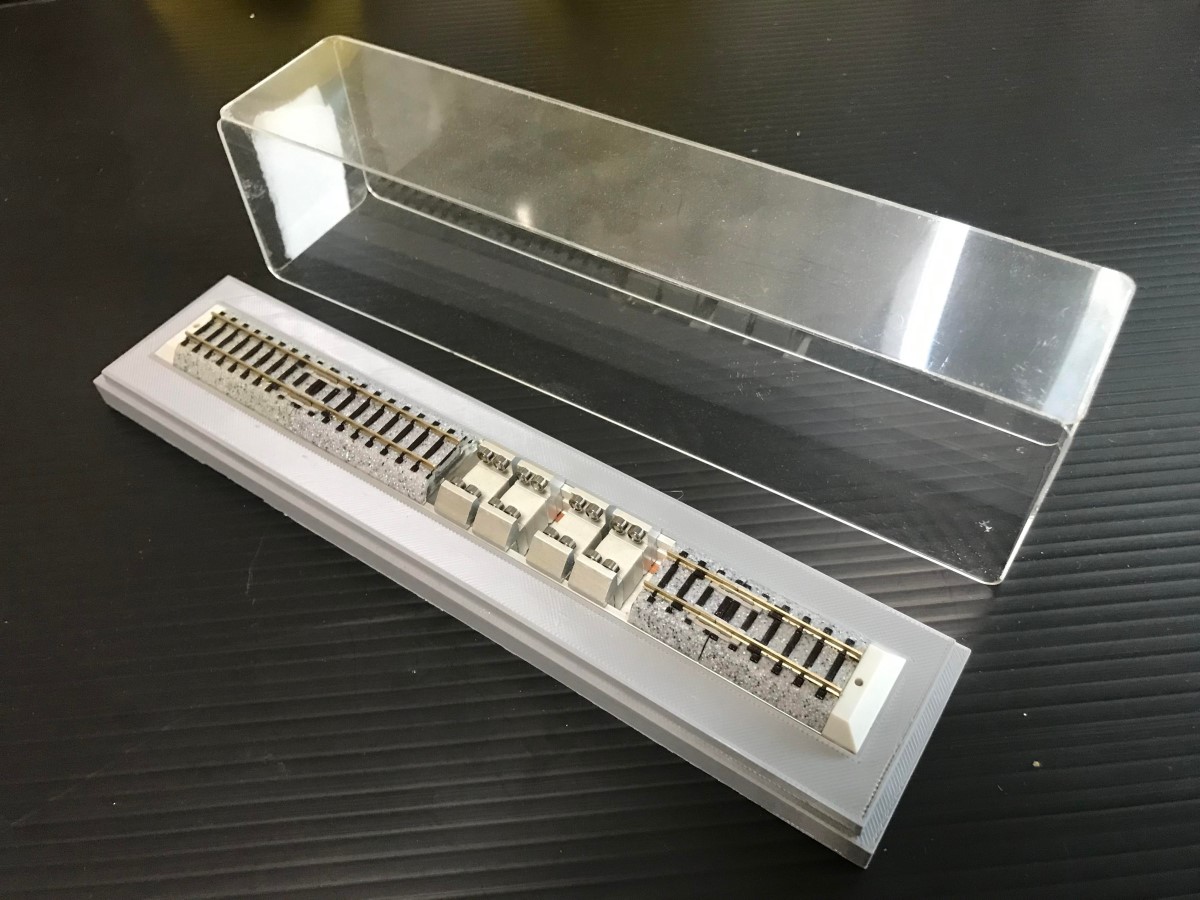

可被安置於 Layout 或木座內做為展式平台之用.
Can be install into the wooden base with acrylic cover...
　
突出的培林座無法被置入展示木座內.
Out off the bearing sets can’t install into the wooden base.
　
圖檔

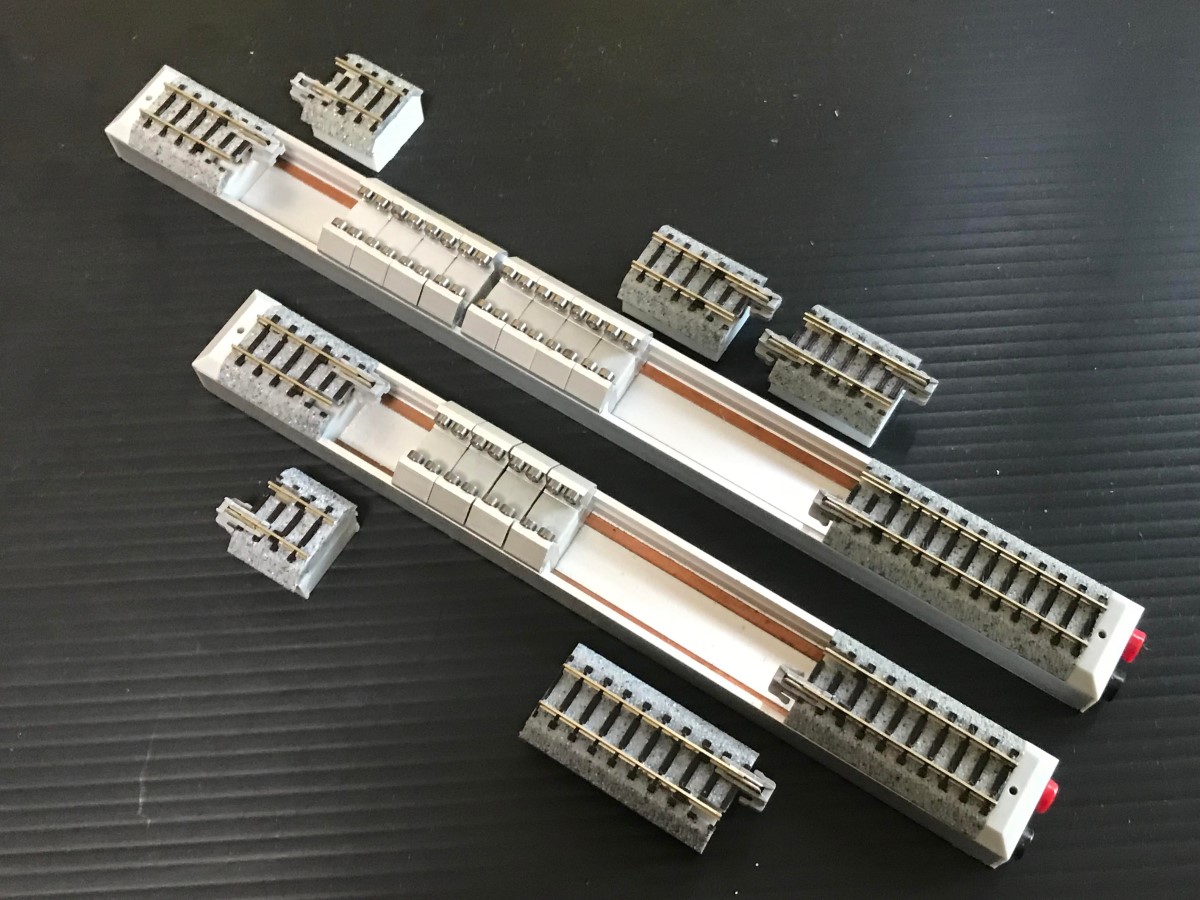

兩種型號可供選擇, N-2838可測試所有歐亞及美國的N規火車, 像 Big Boy, Chalenger, DD40AX...
The assemble tracks and moveable bearing brackets are able to all kind of brand locomotives which have the double gear driver transmission mechanism locomotives.
Our N-2838 is able to test the America bigger locomotives as: big boy, challenger, EM1, DD40AX....
　

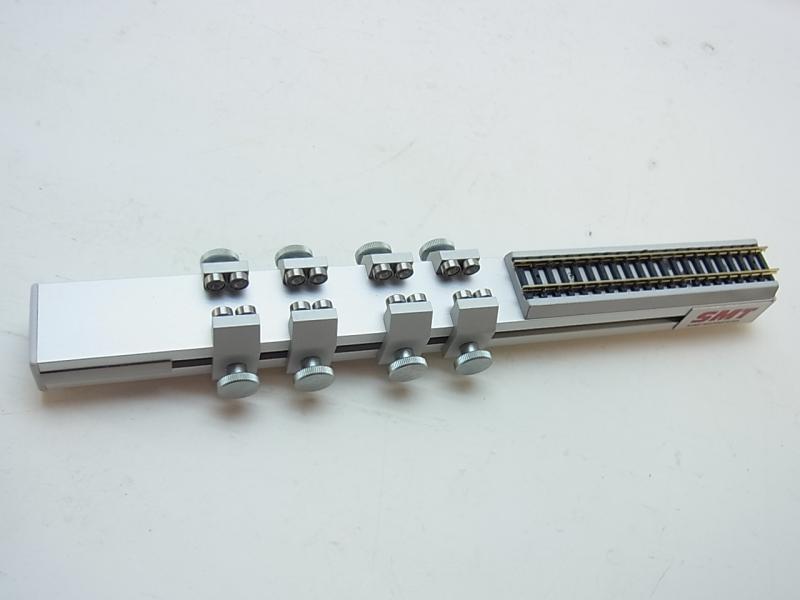

SMT現僅有一種型號可選, 無法測試大型美國蒸氣, 柴油火車頭.
Because the track can't move so those bearing
sets can not move to long distance for the bigger
diesel, electric or steam locomotives.
　

地心引力導電原理設計, 使用更方便.
The power through whole roller test stand.
必須扭緊手轉螺絲才會導電, 使用不方便.
The front track do not have the power supply.
　

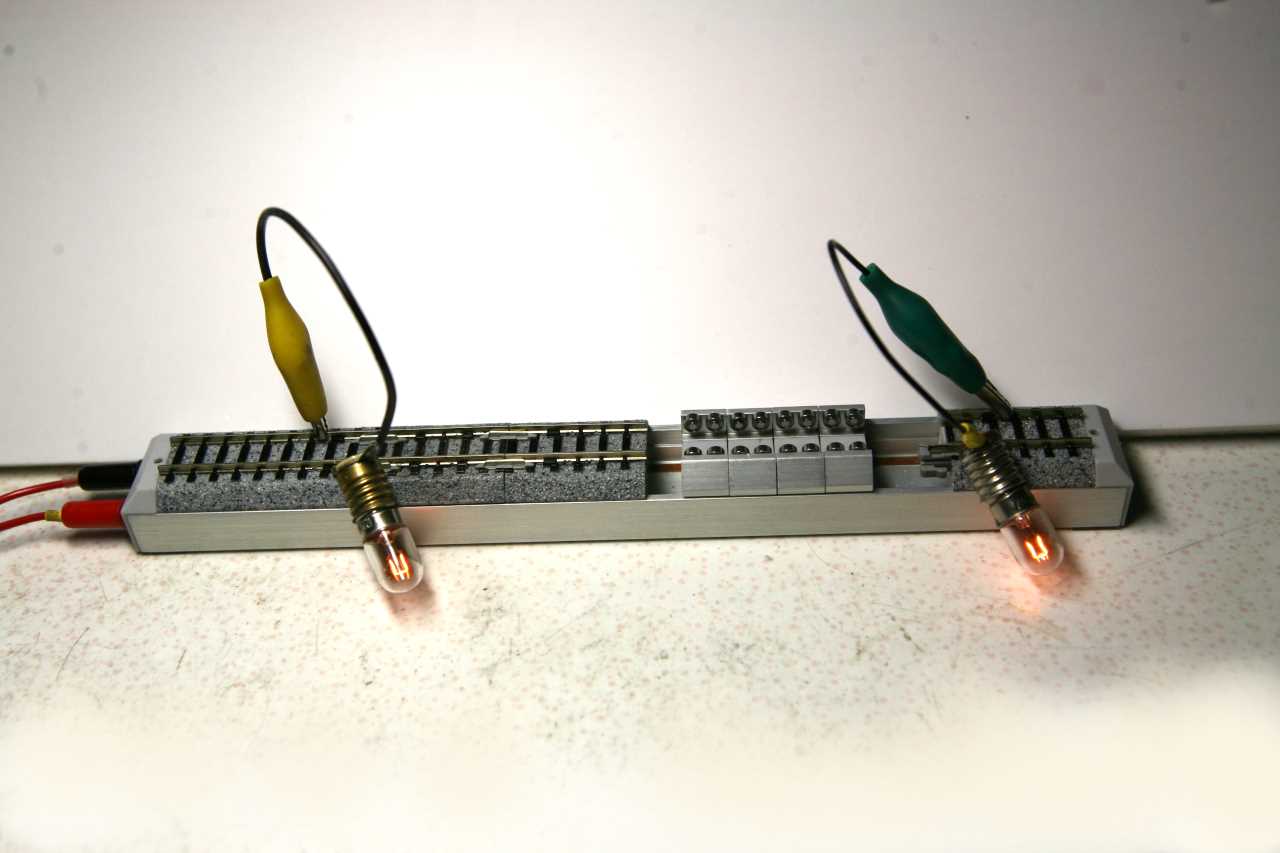

前後兩端軌道皆具有導電功能, 並可銜接擴充軌.
The power through whole roller test stand.
SMT 前端無軌道也無導電功能也無法與擴充軌道銜接.
The front track do not have the power supply.
　

　

機械結構之差異: 　

"structure compare" 機械結構之優缺比較
RailStand N roller test stand Minitrix N roller test stand

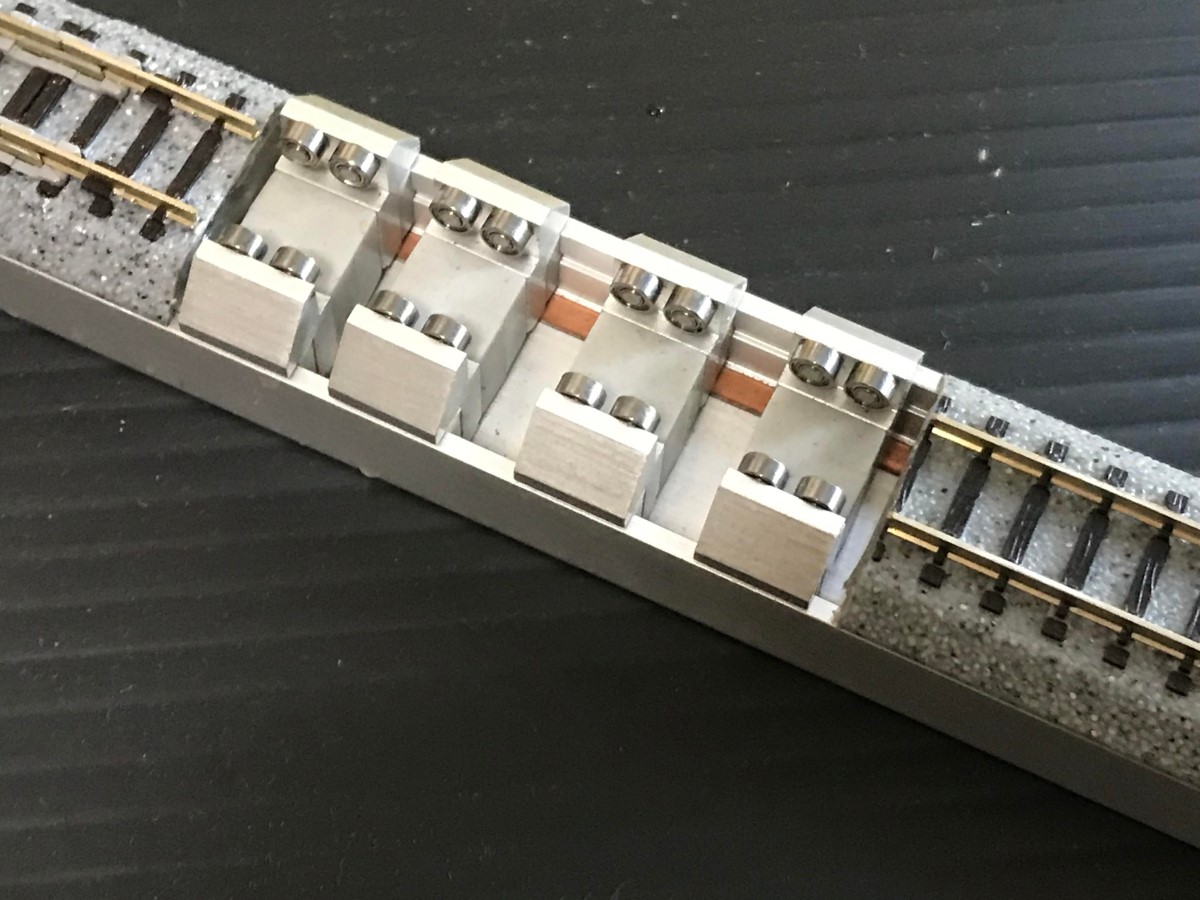

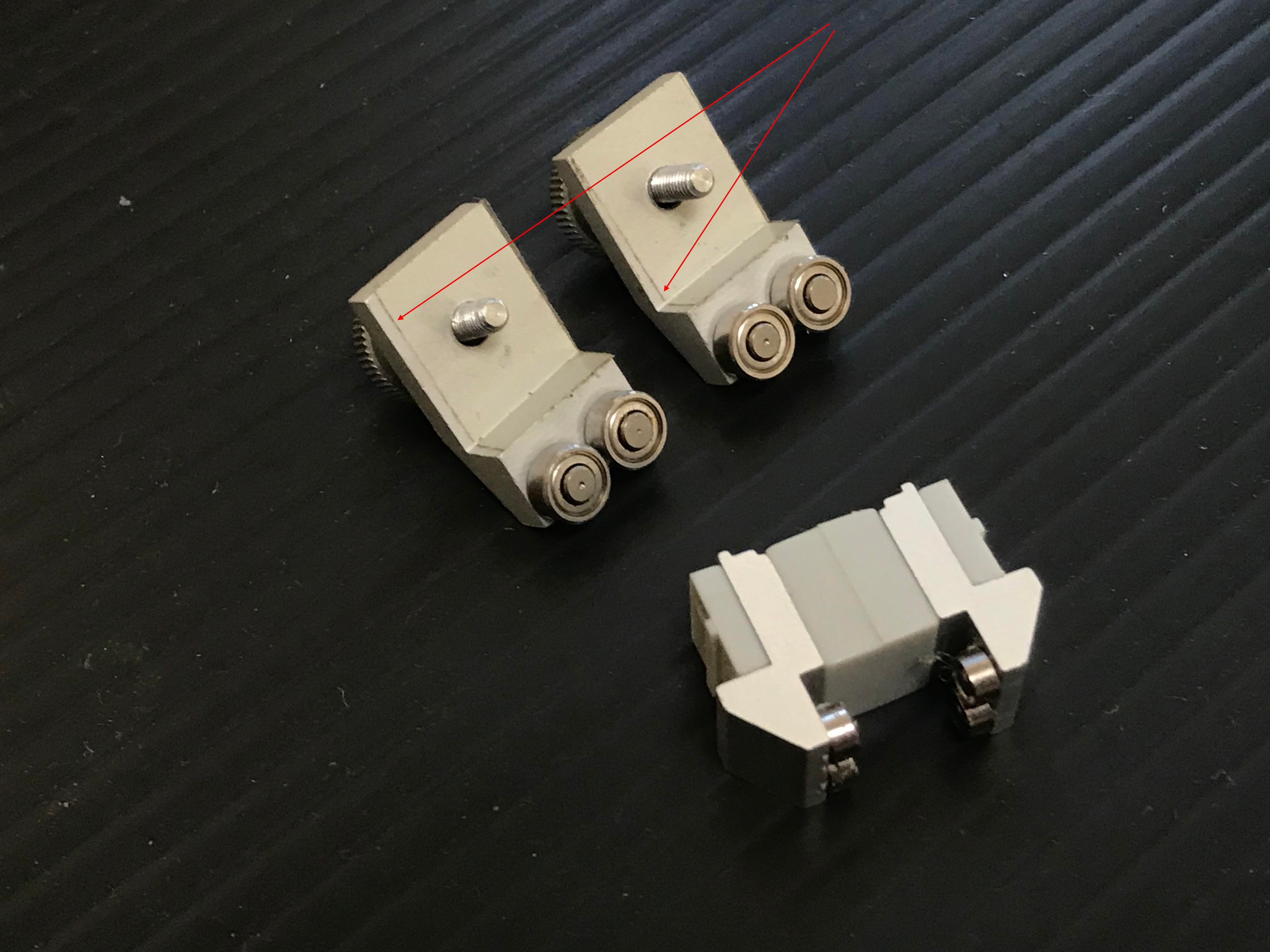

以ABS配件絕緣並連結兩培林座提供最好的絕緣及滑動功能.
The ABS parts insulate electric and connect two bearing trolley provide with the best electrical conductivity and slidability.
　

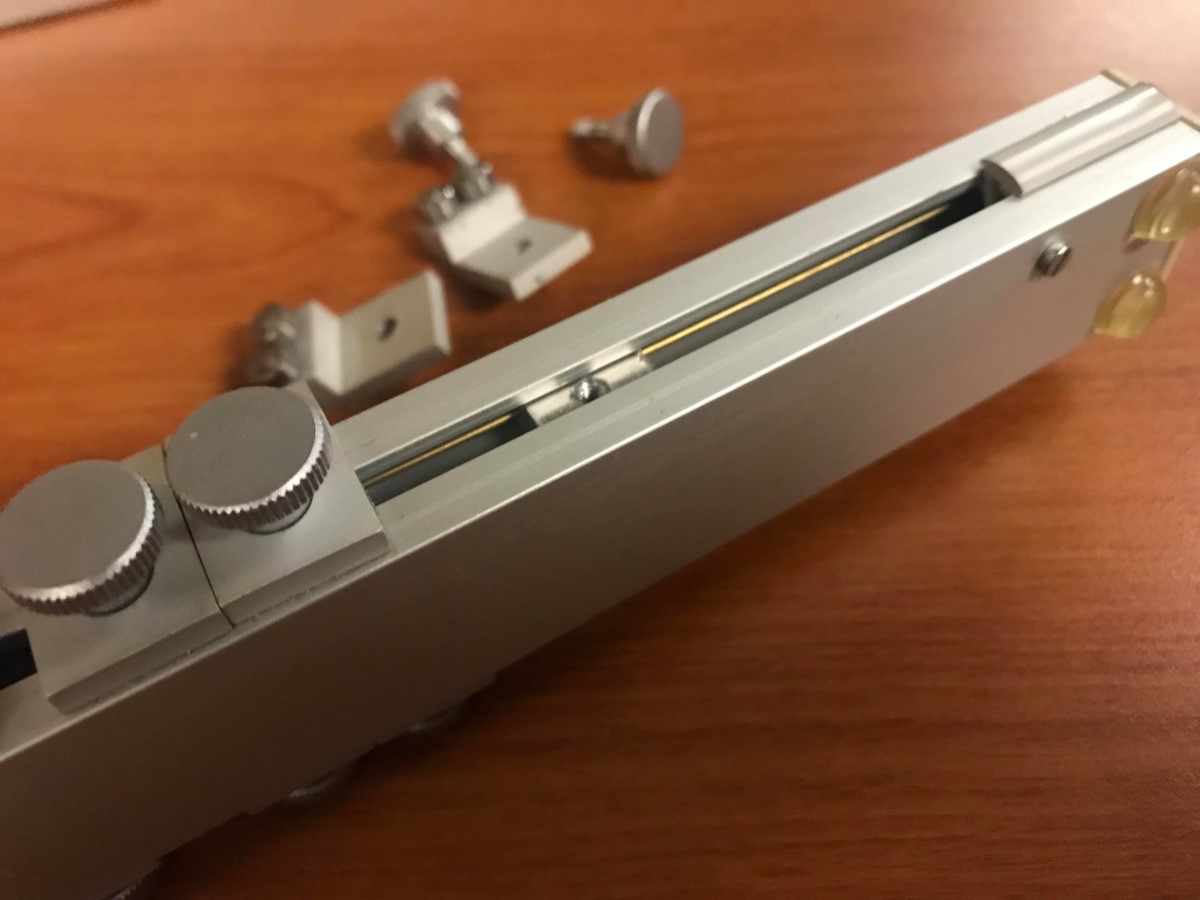

兩個培林座以 薄壓克力板連結且兩培林座左右內側皆以膠帶做為絕緣體導致不易滑動.
Tape is used to insulate the stand and bearing set, making them difficult to adjust the bearing set.

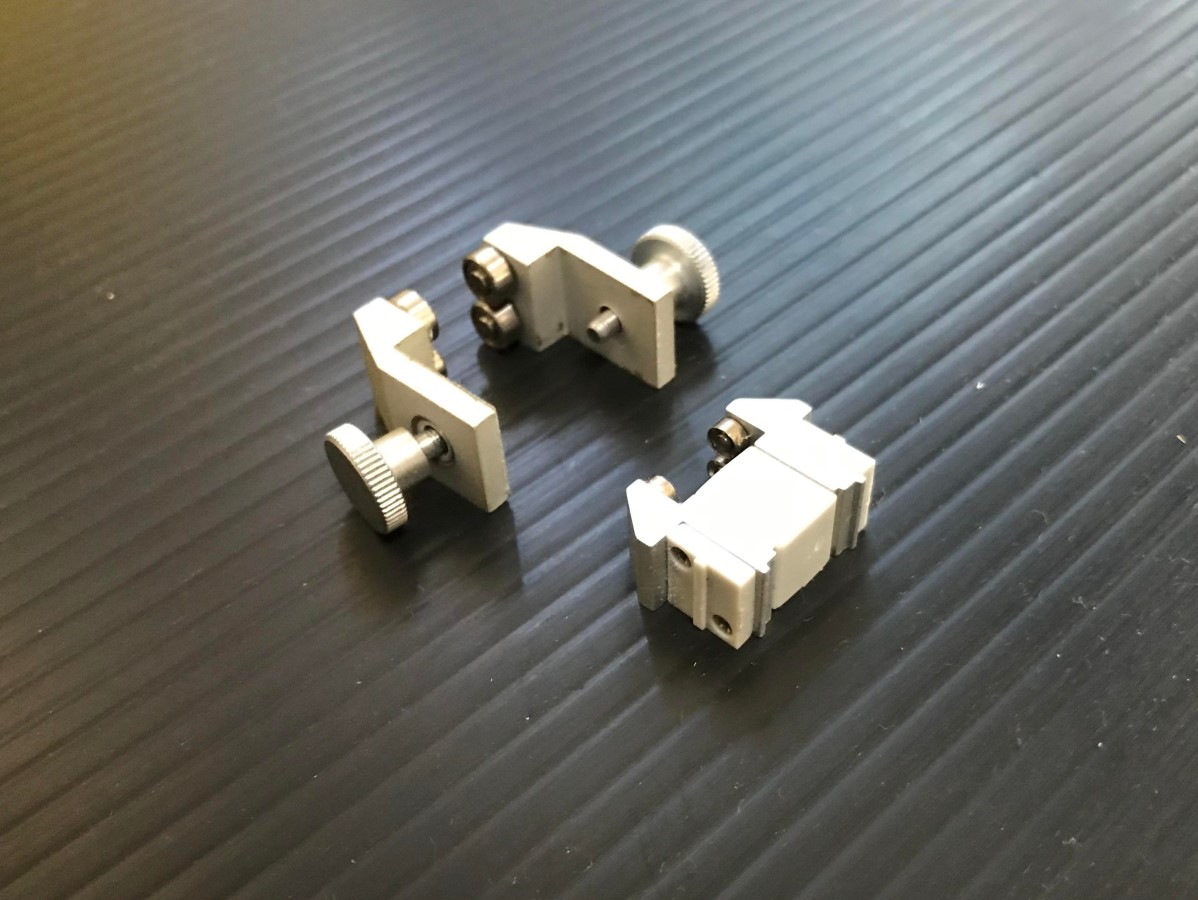

堅實的培林組結構設計提供最佳的絕緣及最好的滑動導電功能.
Has the strong structure and best power insulation also letand easy to adjust the distance for the drive wheels.
培林組左右兩內側以膠帶做為絕緣體不易滑動.
The screws and Difficult to adjust distance for the locomotive drive wheels.

採地心引力重力兩軌滑動式導電結構, 容易移動且得到最佳導電效果..
Use gravity principle to conductive, you can use it without screw.
　

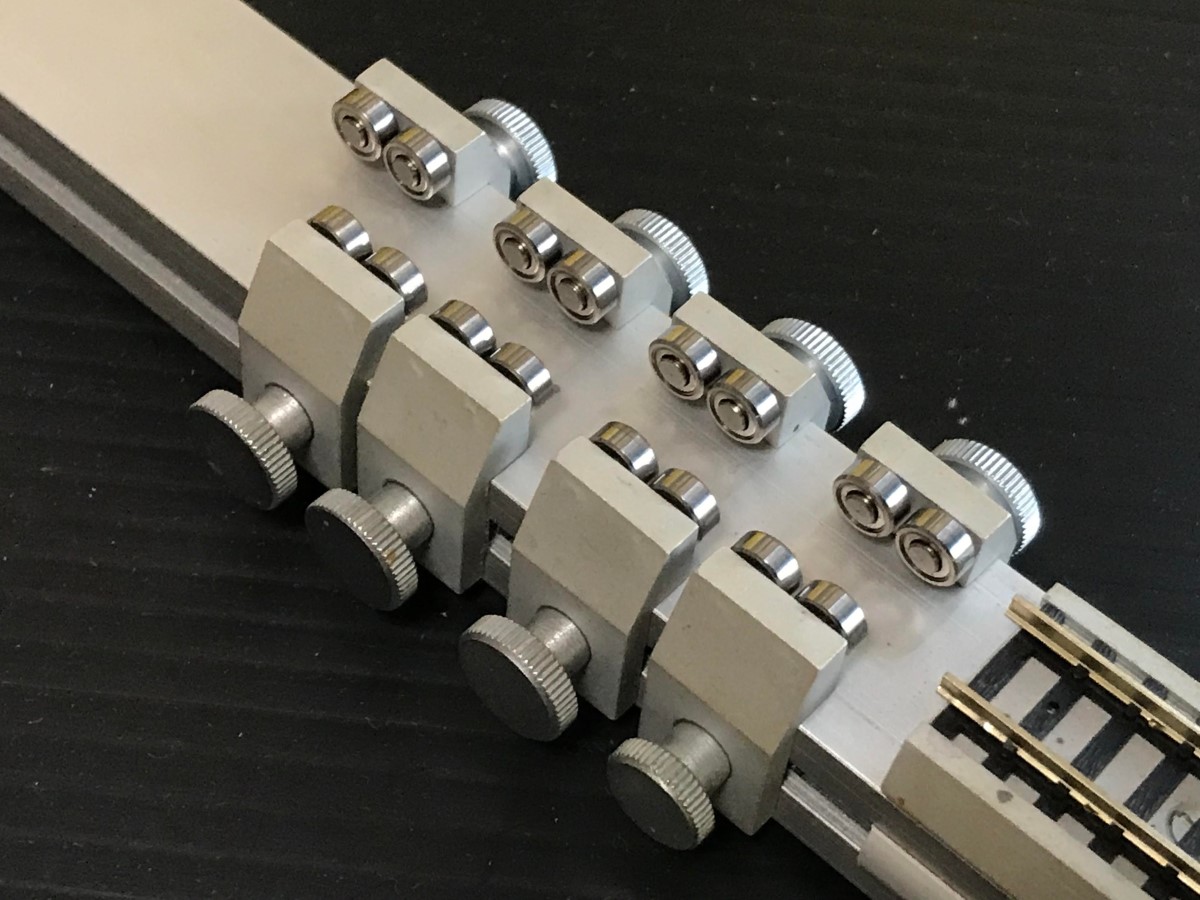

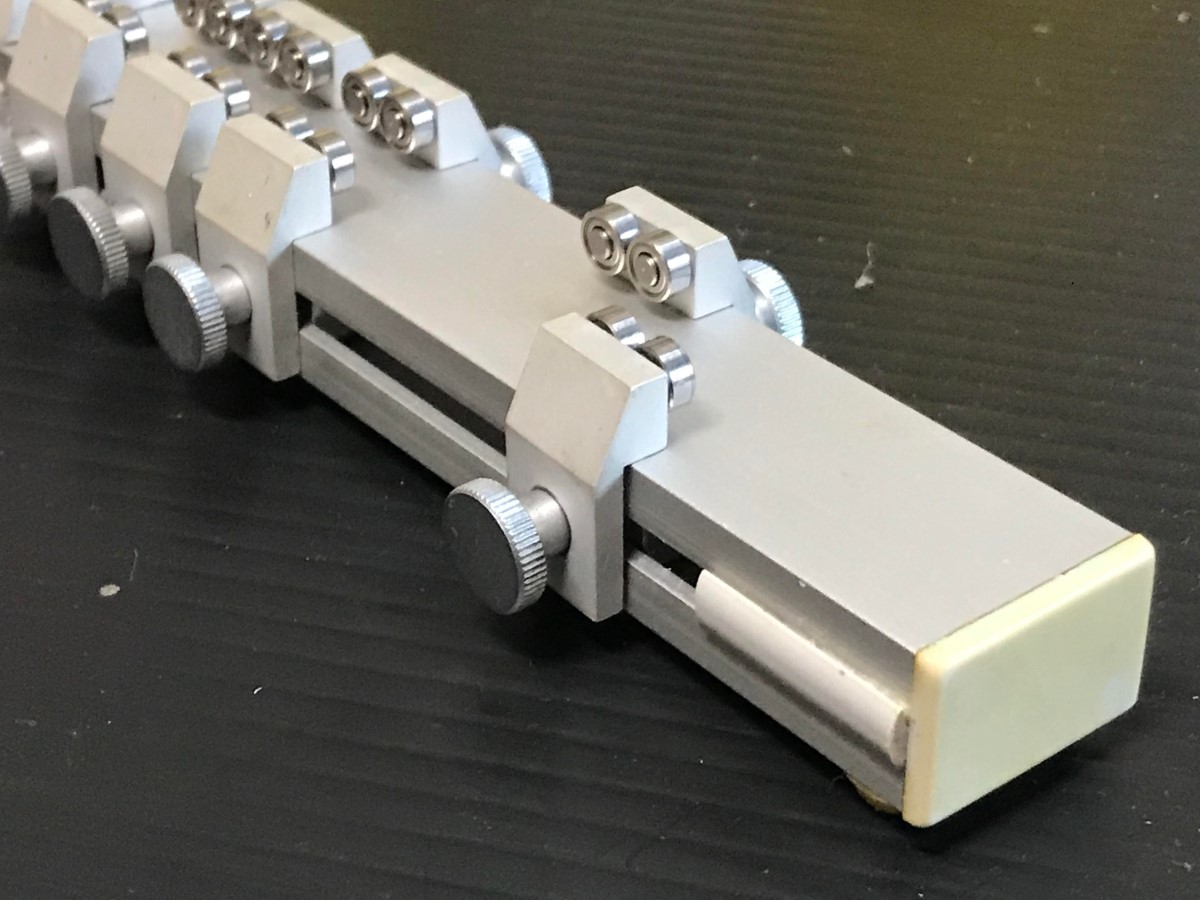

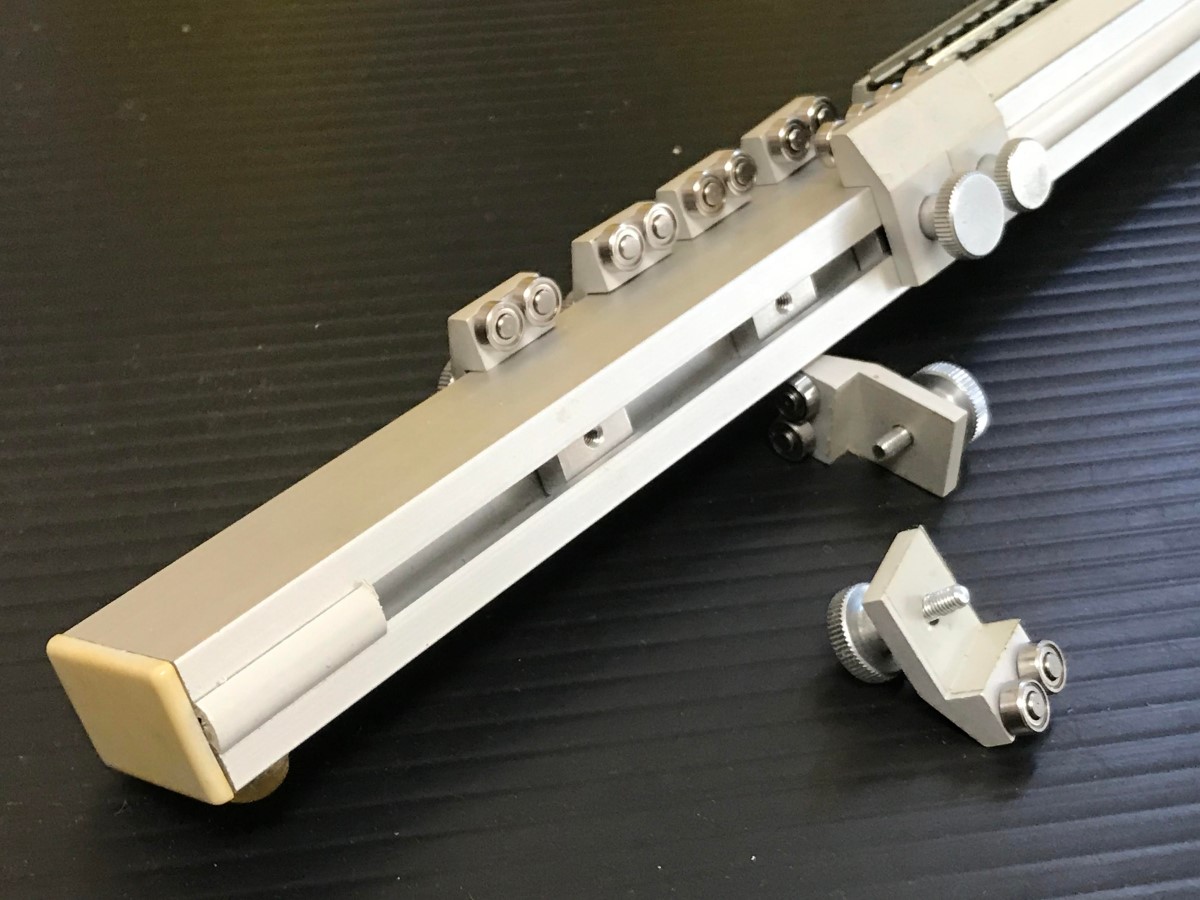

採螺絲旋緊夾式導電結構, 左右兩側螺絲必須旋緊後才能導電運轉.
Must screw tight the screw to conductive then use.
圖檔

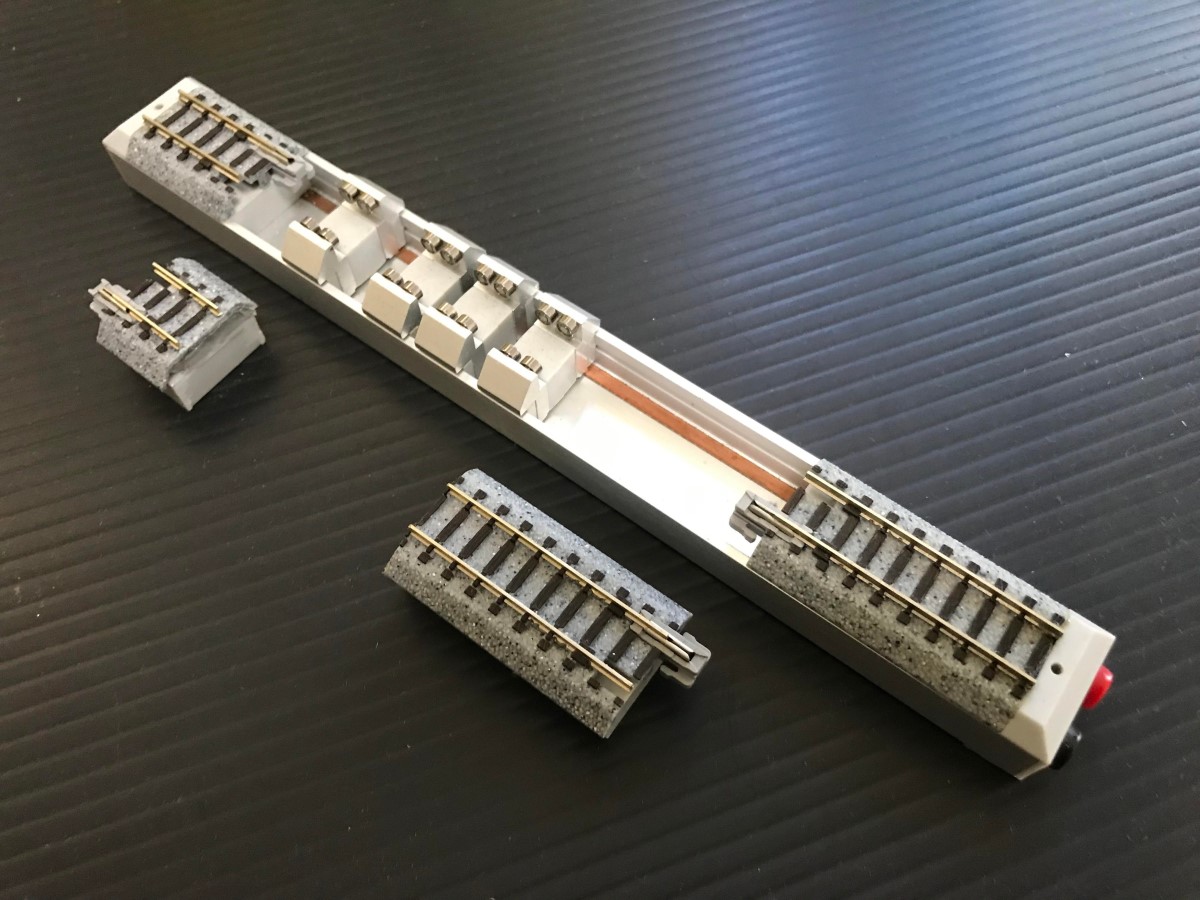

提供多個組合軌可以依各型機車頭之需要而可隨時調整，並可以與前後端軌道銜接並皆具導電能力.
Assemble tracks are able to move to any position for all kind of the locomotive.
　
沒有擴充軌設計, 無機動性也無法測試大型柴油車、電車或蒸氣火車.
Do not have the assemble track design, can not test bigger diesel, electric or bigger steam locomotives.

培林組無螺絲設計使用更容易更方便.　
No screws design let user more easy to use.
　
手轉螺絲扭緊導電設計, 使用極為不便.
You must tighten each screw to make it conductive electric so it's not easy to move and use. .

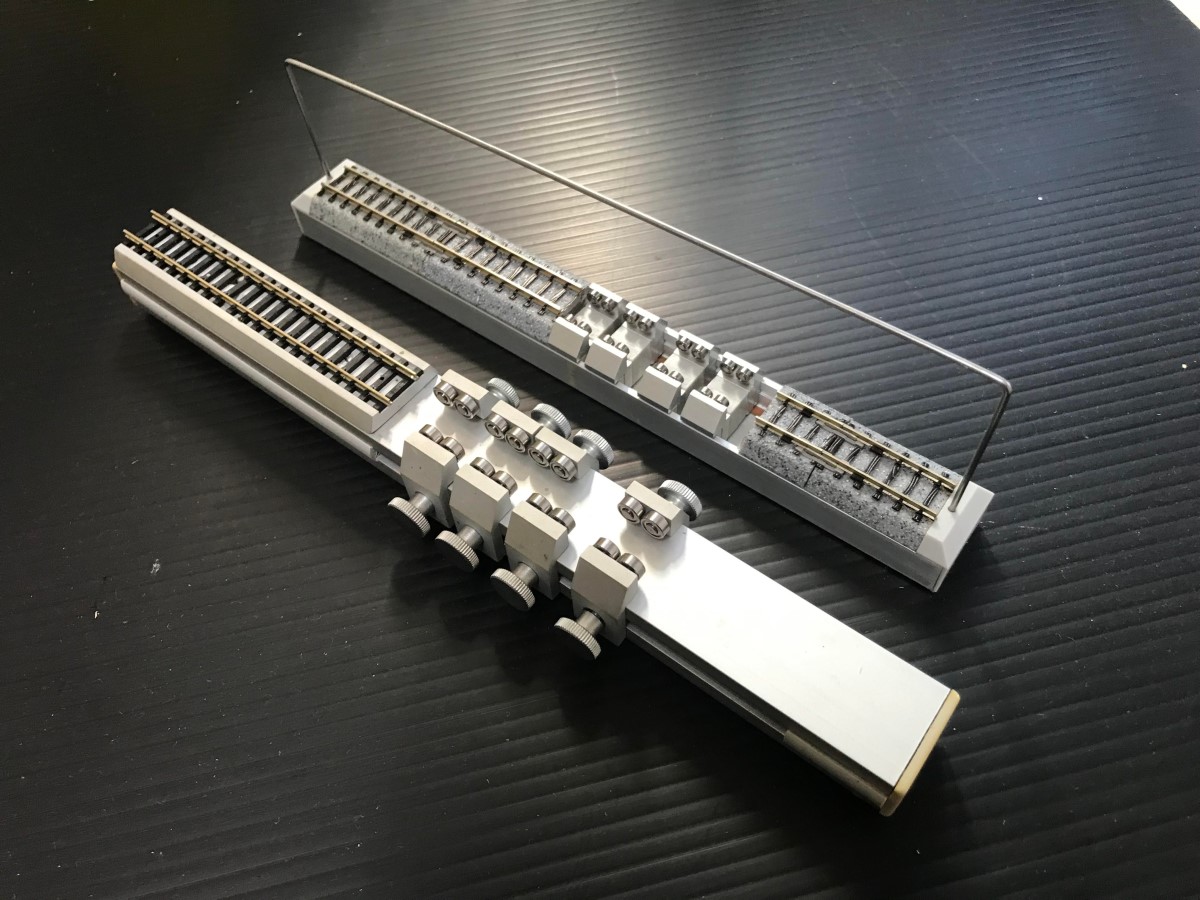

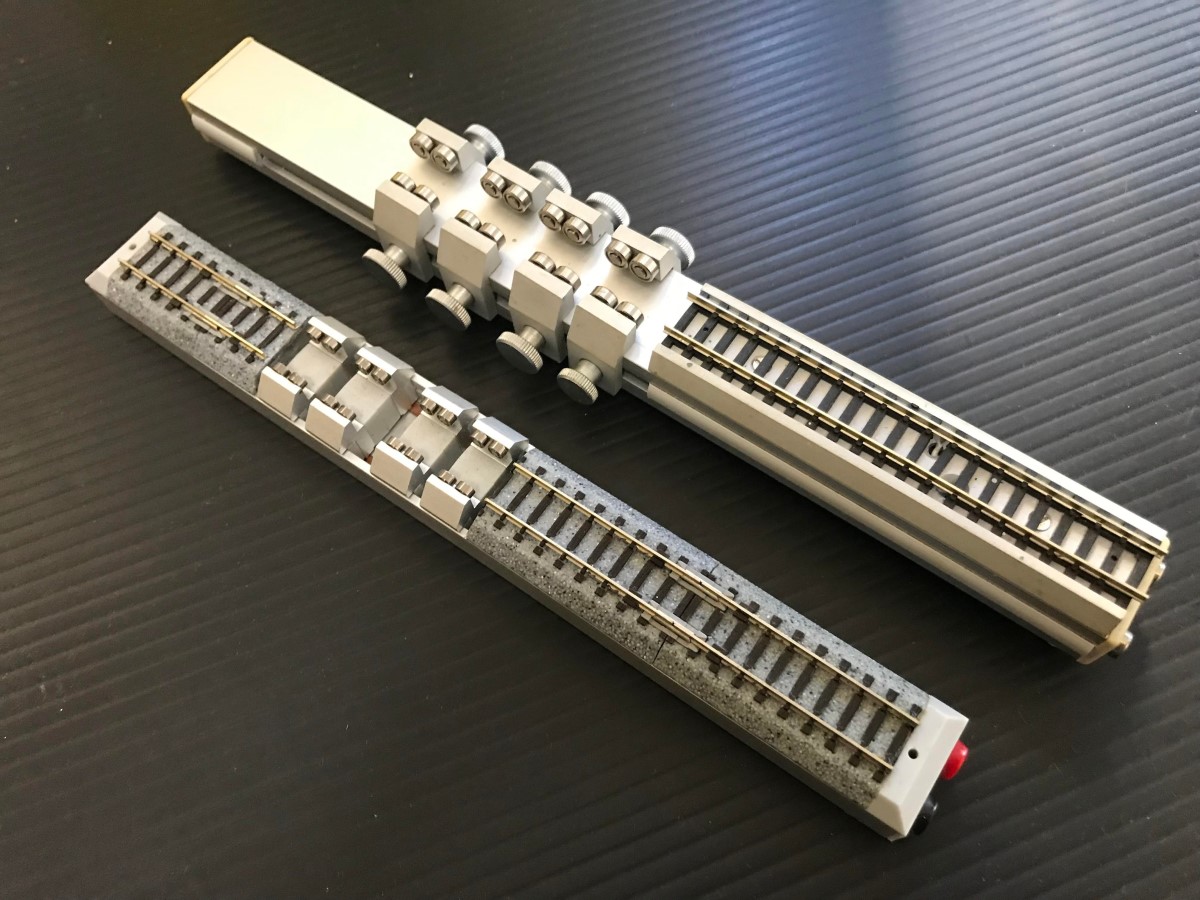

右邊是 RailStand 左邊是 SMT 的跑步機, 體積相差約兩倍.
RailStand in right side, SMT in left side, they're volume about two times.　
　

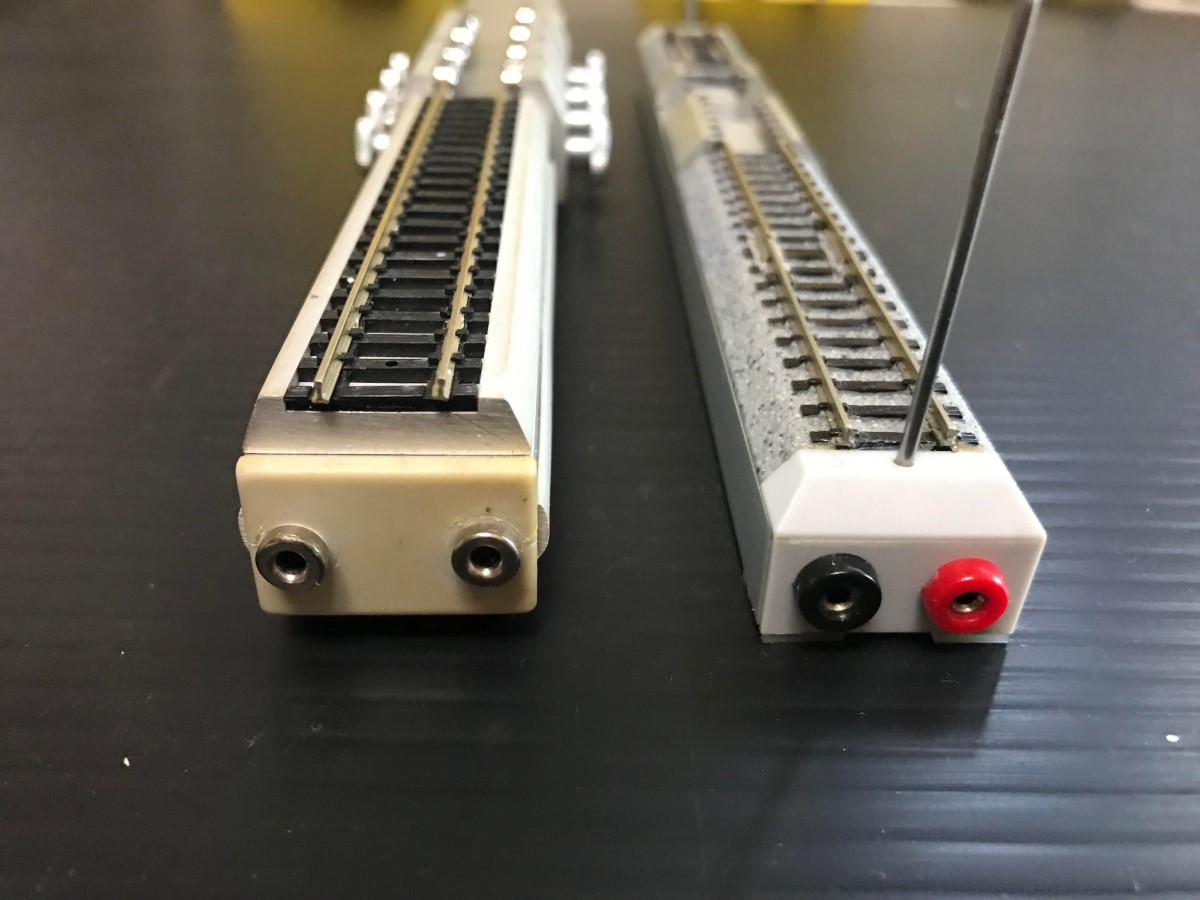

兩個測試平台的前端大小比較照片.
Two roller test stand in the front size compare  photo.


　

RailStand & SMT N roller test stand easy comparison 產品功能簡易列表

產品功能
Product function		 RailStand #N-2184 SMT #66721
1. 測試電氣機車的集電弓導電之功能.
    Test electric locomotive let the power through the pantograph.

  YES

 NO
2. 測試平台可被置入木質展示座內.
    Install into the wooden base to be a demo stand.		 YES NO
3. 可測試大型雙動輪組的柴電機車及電氣機車.
    Able to test the bigger diesel or electric locomotives.

YES

 NO
4. 組合式軌道設計, 可適用各種類型機車頭.
    The assemble tracks are able to testing all type of the locomotives .		 YES NO
5. 測試平台可被整合入C軌 Layout 內並具 programming 功能.
    RailStand roller stand can install into the layout and be a programming track.		 YES NO
6. 平台前後端軌道皆有導電並皆可與擴充軌連結並傳導電源.
    The electric power goes through entire roller test stand are extend able.		 YES NO
　
產品結構之差異  Structure different RailStand #2184 SMT #15104
1. 凹型槽底座穩定又方便培 林組及組合軌道於槽內移動調整.
    The notch of the Patend structure are stable and ezsy for the bearing sets and assemble tracks move.		 YES NO
2. 採用地心引力導電結構, 不必鎖緊螺絲也可正常導電.
   Gravity principle to conduct electricity you don't need to screw the screws even without screw .		 YES NO
3. 滑動式導電結構設計, 培林組移動順暢又方便.
    The third track structure with bearing trolleys are moveable and flexable.		 YES NO
4. 金屬凹槽結構提供擴充軌穩定的移動基礎, 擴充軌並可與前後端軌道銜接並具導電能力.
    Assemble tracks can move to anywhere stand and conduct electricity.		 YES NO

註: 2022.05製表
