HO scale roller demo stand
(HO Rollenprüfstand)

        繼2013年6月發表具有多項專利設計的模型火車測試平台 roller test stand 後, RailStand 又進一步領先同業研發出全球首創 "模型火車動態展示平台" dynamic roller demo stand. 新研發的動態展示平台其特色是將所有的培林組完全隱藏於軌道中使模型火車於展示平台上運轉時幾乎看不到培林組而達到完美展示的效果.其支援 DC/AC + 數位/類比 + 集電功導電功能, 此動態展示平台上所有的培林組仍具有調整位置的功能使您的愛車可以在跑步機上穩穩的運轉, 使您可以依火車動輪的輪距及大小而調整, 因此同一展示平台可適用多款同類型或同比例火車使用, 但為達到完美的展示效果, RailStand 提供三種規格供客戶選擇也接受客戶為心愛的火車量身訂製專屬的展示平台.
    本動態展示平台是特別為模型火車展覽館的櫥窗而設計, 當然也適用於商品展示櫃或家中酒櫃內展示, 除此之外,本動態展示平台也可置入展示木座及壓克力防塵蓋內展示, 請參觀右上角的VIDEO, 預計四月中旬上市.
產品型號 測試輪組數 座台長度 是用車型及車款 售價 NT
客製化 自訂 可訂製 依您的愛車量身訂製 需估價

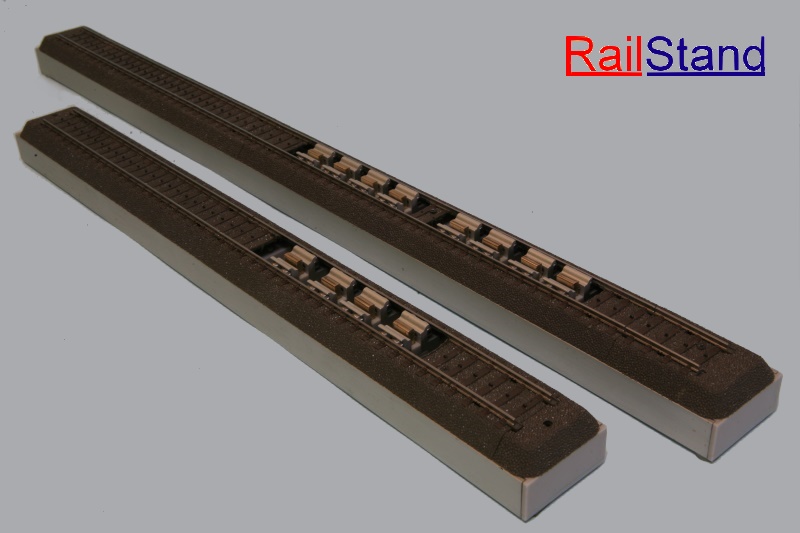

        After we have announced the HO scale "roller test stand" in June 2013,  we invented a new type of  dynamic "roller demo stand". This kind of the roller demo stand was design for exhibit the model trains by dynamic, also It's allow you to put into the wooden stand with the arcylic display case. it's similar with the roller test stand but hidden all of the bearing trolleys inside the track and all of the bearing trolleys are adjustable you are able to move the bearing trolleys to suitable every drive wheels. RailStand roller demo stand support AC/DC + Digital/Analogy + Pantographic. For the best demo effect, we offer two kind of types and accept customize for your favor locomotive.
Item No Bearing trolleys  Stand Long For kind of locomotive PRICE
Customize 4 or 8?  any length for your favor locomotives evaluate

Package included:
- 520mm or 376mm anodized Aluminum alloy stand
- with 8 bearing trollys
- Overhead wire for electric engine of pantograph x 1pc
- 3 connecters and cables
- 3 years warranty


Functions:
- Supports DC/AC of model trains and Digital/Analogy System.
- A removable overhead wire for testing the Pantograph of electric locomotive.
- Particular hidden bearing trolley design.
- Able to put into the wooden stand with Acrylic display cover stand to be a demo stand (addtional).
- Can install in the Marklin and TRIX tracks layout and connected to be a programming track.
- Aluminum slot base with the electricity conductor structures make easier to demo or test.

1.    Supports DC / AC  of model trains and Digital/Analogy System.

2.   A removable overhead wire could be simple installed for testing the Pantograph of electric engine.


3.   roller demo stand are available put into the display Acrylic cover and wooden stand, you also able to install in the Marklin and TRIX  tracks layout.


4.   roller demo stand is able to install in the Marklin and TRIX tracks layout and can be a programming track.


5.   Aluminum slot base with the special bearing trolley offer the best structure design for the AC power system also the best insulate and conduction structure design give more safety for the roller stand.



Item NO. DY3624 Item NO. DY5208
Package included:
- 376mm anodized Aluminum alloy stand
- 4 bearing trolleys
- Overhead wire for electric loco of pantograph x 1PC
- 3 connecters and cables
- Dimension 376mm(L) x 40mm(W) x 28(H)mm
- Net Weight 380g / Gross Weight 520g
- 3 years warranty
Package included:
- 520mm anodized Aluminum alloy stand
- 8 bearing trolleys
- Overhead wire for electric loco of pantograph x 1PC
- 3 connecters and cables
- Dimension 520mm(L) x 40mm(W) x 28(H)mm
- Net Weight 570g / Gross Weight 740g
- 3 years warranty

Videos: i
RailStand roller demo stand + Marklin/TRIX BR01 202

RailStand roller demo stand + KTM Ali-shan 18 ton mountain shay.

RailStand roller demo stand + Marklin BR56.

RailStand and ESU contral station and TRIX Big Boy locomotive run on the RailStand dynamic roller demo stand.

RailStand and mobile station and TRIX Light Mikado run on the RailStand dynamic roller demo stand.

RailStand and mobile station and TRIX BR55 run on the RailStand dynamic roller demo stand.

TRIX FINE ART S2/6 steam locomotive run on the RailStand dynamic roller demo stand.

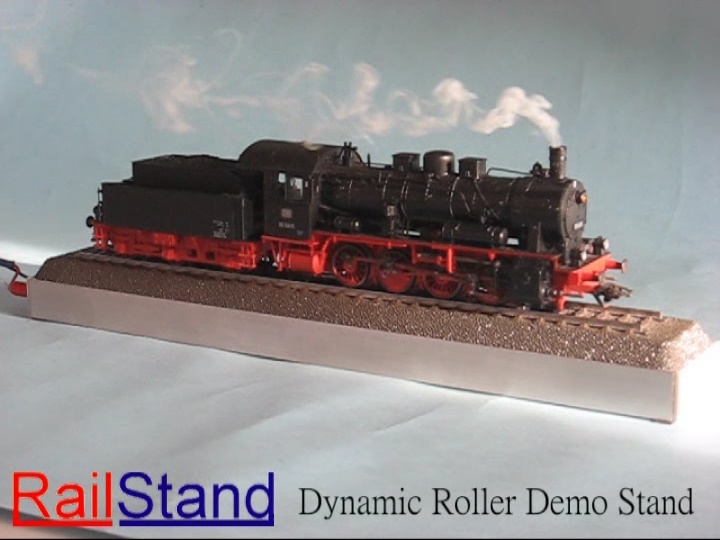

TRIX BR55 0-8-0 with digital sound and Smoke generator&nbsnp; run on the RailStand  HO2724 with DCC.


PS1: Check RailStand similar different gauge roller stand.
PS2: We designed and manufactured the roller test stand, dynamic roller demo stand and easy roller test stand Those three knid of roller stand for test and demo your locomotives, If you are interested in our products or If have any questions or any suggestions to RailStand, please click the RailStand to leave the message to contact us or please E-mail: sales@trains.com.tw or Phone: 886-9-37848773 , We accept payment by PayPal .
