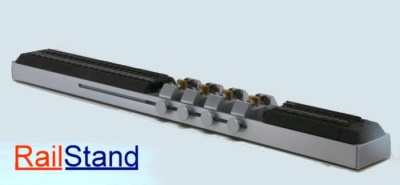

(Rollenprüfstand)
|
|
This new roller test stand is for the HO gauge, Unique Design and TOP Quality, Patented !!! it's support AC/DC + Digital/Analogy.
Functions:
|
1. |
Supports DC / AC of model trains and DCC or Analogy System.
|
2. |
A removable overhead wire could be simple installed for testing the Pantograph of electric engine.
|
3. |
Easy to connect two RailStand to test ICE, TGB, EURO Star... high speed model trains.
|
4. |

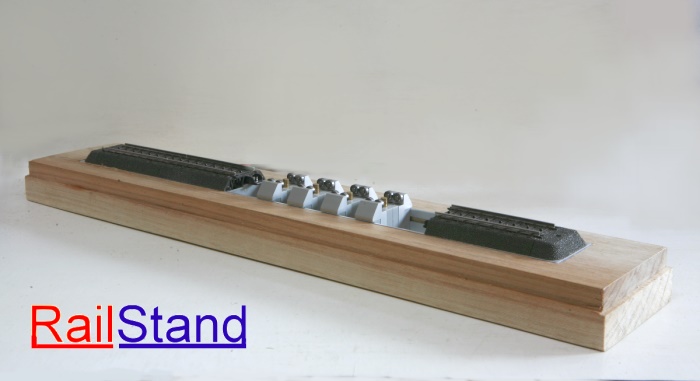

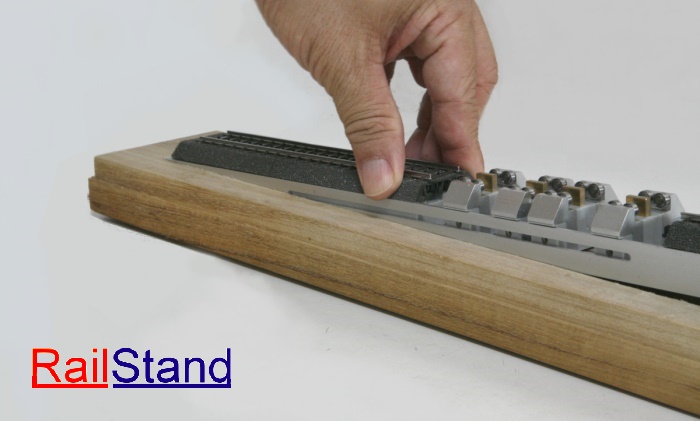

RailStand are available put into the display Acrylic cover and wooden stand, you also able to install in the Marklin
and TRIX tracks layout.
|
5. |
Roller Trolleys also could testing the model train on the roller test stand
or layout tracks.
|
6. |
Aluminum slot base with the electricity conductor structures make easier to adjust/extend/remove the roller trolleys or
assemble extend tracks from the stand.
|
7. |
RailStand testing platform is designed to conduct electricity both ends,
Roller trolleys and Assemble extend tracks are also combinable and
electricity from both ends track.
|
8. |
Special AC power structure is moveable and easy install or move out of stand.
|
|
Package:
| Item NO. HO3804
|
| Item NO. HO5208
|
|
- 380mm Aluminum stand
- Bearing sets x 4pcs
- Antenna for electric engine of Pantograph x 1pc
- 94mm assemble track x 1pc
- 3 connecters and cables
- Dimension 380mm(L) x 40mm(W) x 28(H)mm
- Net Weight 380g / Gross Weight 520g
- 3 years warranty
|
|
- 520mm Aluminum
- Bearing sets x 8pcs
- Antenna for electric enginen of Pantograph x 1pc
- 64mm assemble track x 2pcs
- 3 connecters and cables
- Dimension 520mm(L) x 40mm(W) x 28(H)mm
- Net Weight 560g / Gross Weight 740g
- 3 years warranty
|
|
US$315.0
US$259 |
|
US$396.0
US$329.0 |
|
|
Video: |
|

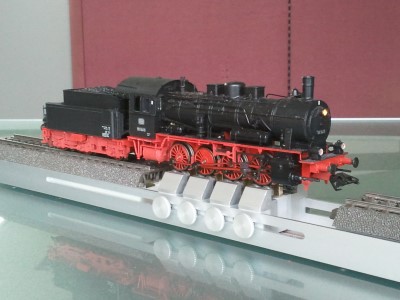

TRIX BR55 0-8-0 with tender and Smoke generator 數位音效+冒煙 run on the RailStand
HO3804 with DCC.
|
|
TRIX BR55 and BR85 two locomotives run on the RailStand HO5208 with DCC.
|
|

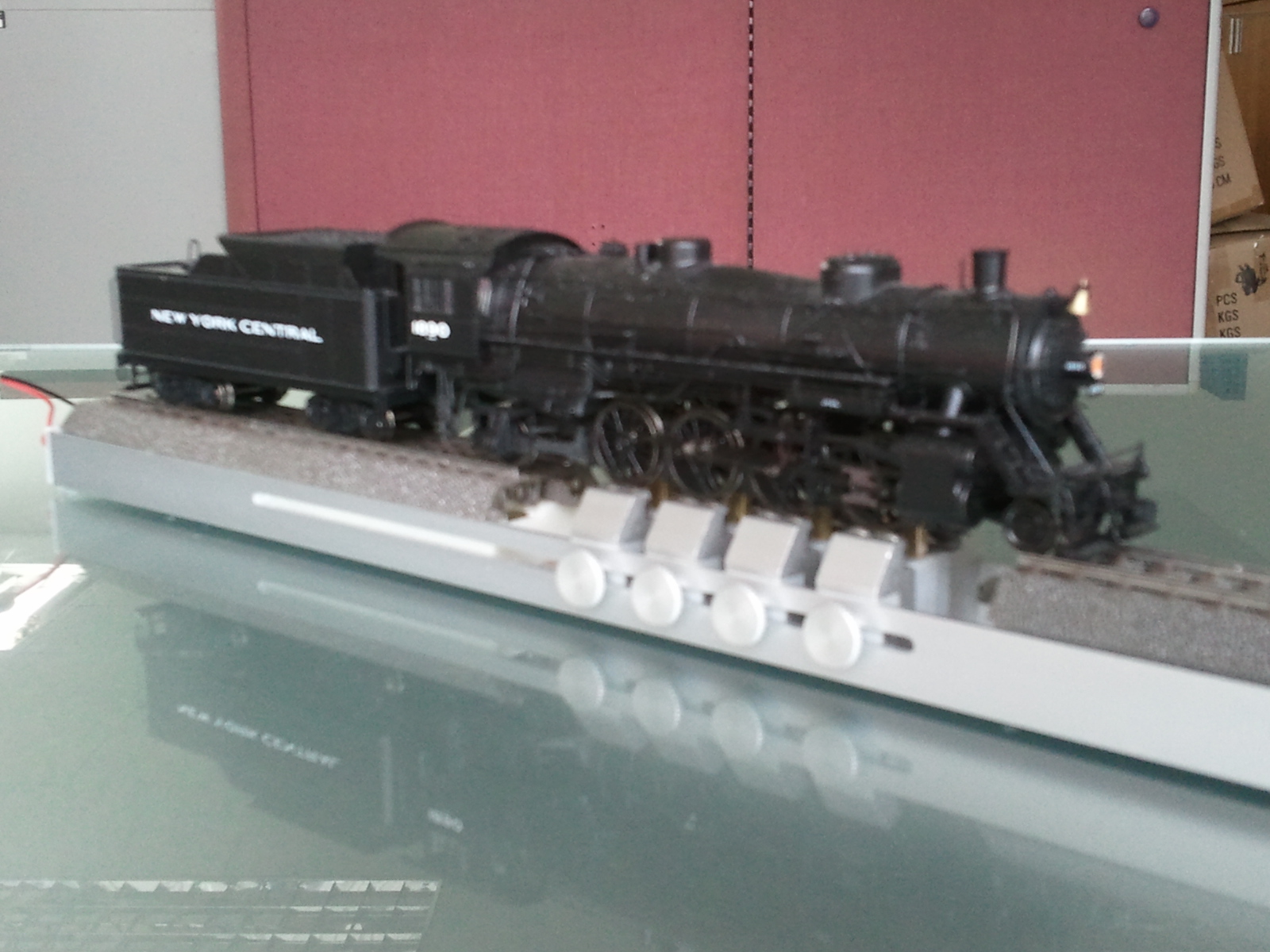

TRIX New York light Mikado run on the RailStand HO3804 with DCC.
|
|

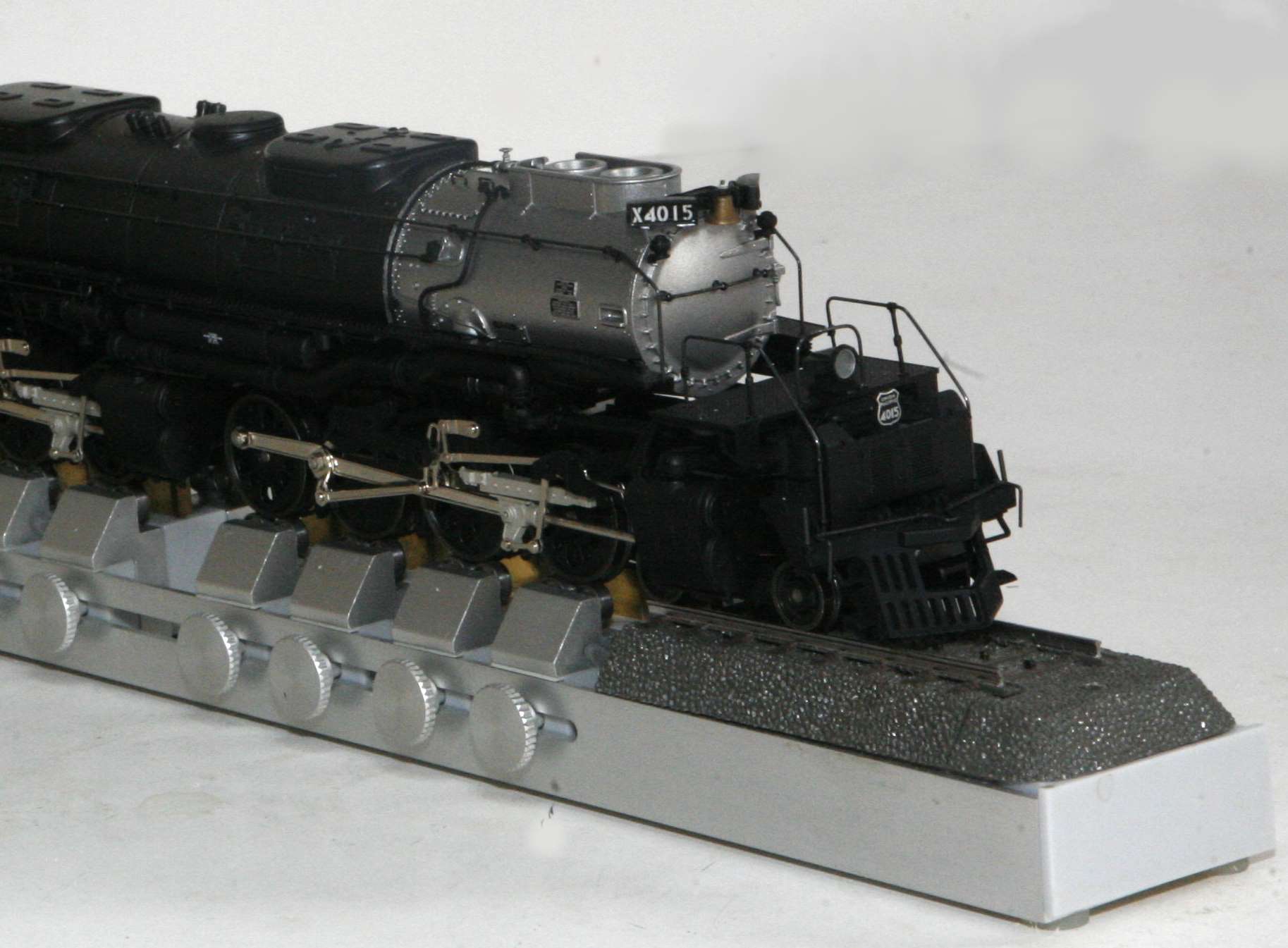

TRIX Union Pacific Big Boy run on the RailStand HO5208 with DCC.
|
|
TRIX Union Pacific Big Boy run on the RailStand HO5208 with DCC.
|
|
TRIX BR85 2-10-2 run on the RailStand HO3804 with DCC.
|
|

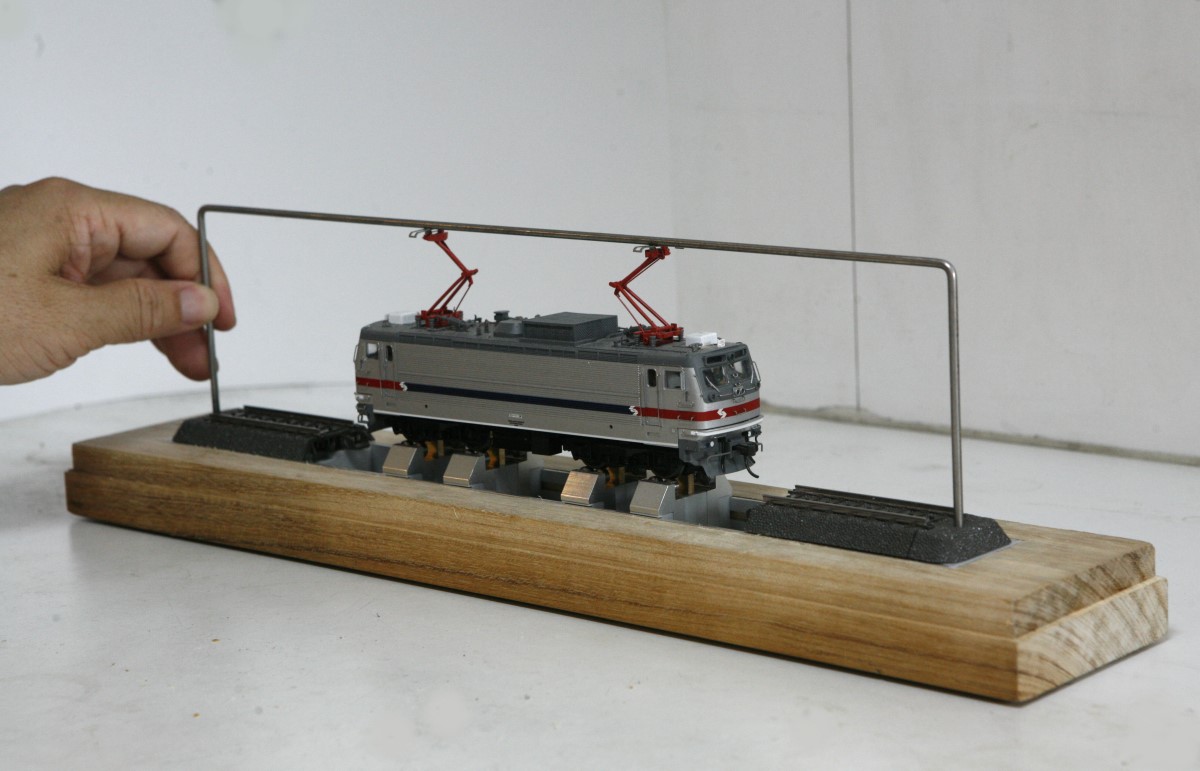

Electric engine run under the pantograph.
|
